Hi everyone,

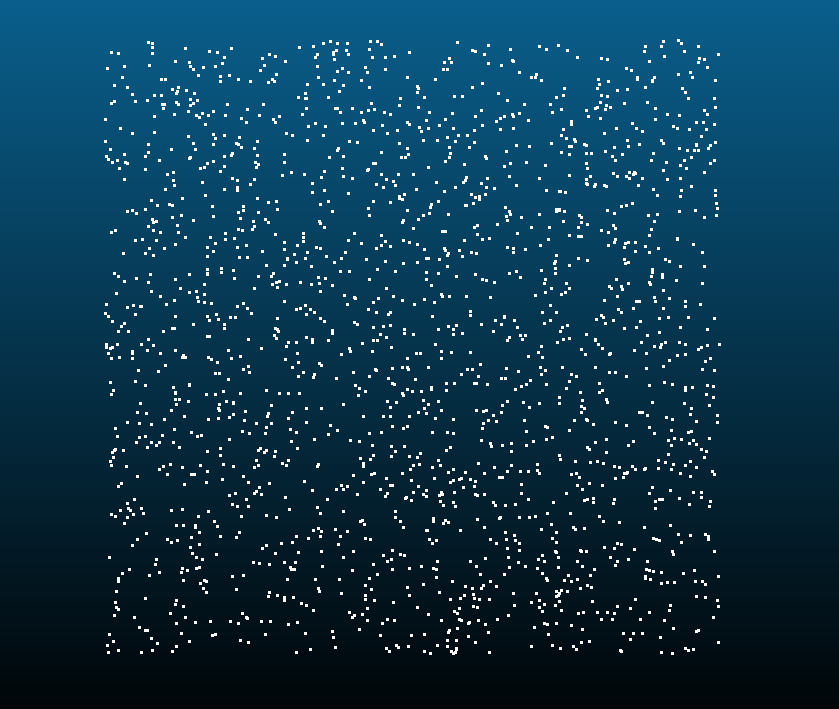

I use Basic Alpha Shapes to get boundary points from some 2d points. As shown in attachments, boundary points like a  rectangle is what I want to get. But I failed. Through seeing demo about Alpha_shapes_2, I think that I maybe set a wrong Alpha. I hope that you can give me some suggestions so that I can get correct result.

The wrong boundary points is result of the following code.

1. typedef CGAL::Exact_predicates_inexact_constructions_kernel  K;
2.
3. typedef K::FT                                                FT;
4. typedef K::Point_2                                           Point;
5. typedef K::Segment_2                                         Segment;
6.
7. typedef CGAL::Alpha_shape_vertex_base_2<K>                   Vb;
8. typedef CGAL::Alpha_shape_face_base_2<K>                     Fb;
9. typedef CGAL::Triangulation_data_structure_2<Vb,Fb>          Tds;
10. typedef CGAL::Delaunay_triangulation_2<K,Tds>                Triangulation_2;
11. typedef CGAL::Alpha_shape_2<Triangulation_2>                 Alpha_shape_2;
12.
13. typedef Alpha_shape_2::Alpha_shape_edges_iterator            Alpha_shape_edges_iterator;
14.
15.
16. template <class OutputIterator>
17. void alpha_edges( const Alpha_shape_2& A, OutputIterator out)
18. {
19.   Alpha_shape_edges_iterator it = A.alpha_shape_edges_begin(),
20.                              end = A.alpha_shape_edges_end();
21.
22.   for (; it != end; ++it)
23.     out++ = A.segment(*it);
24.
25. }
26.
27. bool file_input(std::list<Point> &points)
28. {
29.     std::ifstream is("J:\\General_Random_points2D.pts", std::ios::in);
30.   if(is.fail())
31.   {
32.     std::cerr << "unable to open file for input" << std::endl;
33.     return false;
34.   }
35.   Point p;
36.   for (int i = 0; i < 2000; i++)
37.   {
38.       is >> p;
39.       points.push_back(p);
40.   }
41.   CGAL::set_pretty_mode(std::cout);
42.   std::cout << p << std::endl;
43.
44.   return true;
45. }
46.
47. // Reads a list of points and returns a list of segments
48. // corresponding to the Alpha shape.
49. int main()
50. {
51.   std::list<Point> points;
52.   if(! file_input(points))
53.     return -1;
54.
55.   Alpha_shape_2 A(points.begin(), points.end(),
56.                   FT(10000),
57.                   Alpha_shape_2::GENERAL);
58.   std::vector<Segment> segments;
59.   alpha_edges(A, std::back_inserter(segments));
60.
61.
62.   std::ofstream of("vertix.pts");
63.   CGAL::set_ascii_mode(of);
64.
65.   CGAL::set_pretty_mode(std::cout);
66.   for (int i = 0; i < segments.size(); i++)
67.   {
68.       of << segments[i].vertex(1) << std::endl << segments[i].vertex(2) << std::endl;
69.   }
70.   std::cout << "Alpha Shape computed" << std::endl;
71.   std::cout << segments.size() << " alpha shape edges" << std::endl;
72.   std::cout << "Optimal alpha: " << *A.find_optimal_alpha(1)<<std::endl;
73.   system("pause");
74.   return 0;
75. }

Thank you, in advance. I will be honored to receive your help.

bingxin
