Hi all,
I have made some more progress in using CGAL to do booleans in K-3D. I have
written a converter from k3d::mesh to CGAL::Nef_polyhedron_3, and it appears
to work on two cubes that have their edges parallel to the coordinate system.

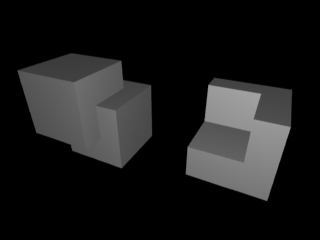

I can calculate the difference of two such cubes, as shown in the attached
image. The cubes consist of 6 quadrilateral polygons, so there is no
triangulation prior to passing them to CGAL.
The problem arises when I complicate matters only slightly, and attempt to
rotate one of the cubes. When I do that, I get the following error from
create_volumes() called by build_external_structure() called on the rotated
cube:
CGAL error: assertion violation!
Expr: c.has_on(p1)&&c.has_on(p2)
File: /usr/include/CGAL/Nef_S2/Sphere_segment.h
Line: 57
I am using an Extended_homogeneous<CGAL::Gmpz> kernel, but the rotation is
applied in K-3D, before the conversion to an exact number type. Is it
possible the error is triggered by rounding errors that happen during the
transformation, which cause i.e. faces to be no longer coplanar?
Any help would be greatly appreciated, as I am immensely stuck on this one :)
For those willing to dig that deep, I have attached the code of the k3d::mesh
to CGAL::Nef_polyhedron_3 converter. It follows the canvas of the built-in
polyhedron_to_nef_polyhedron converter, which I am not using because I need
support for open polygons.
regards,
Bart
Attachment:
Description: JPEG image
